In the world of making things just so and artful design, laser etching along with laser engraving have come up as very effective methods to mark, decorate, or customize materials. This manual seeks to touch on every aspect of these two closely related processes, such as their principles, applications, and benefits. Here, we will discuss readers’ knowledge about laser systems, the difference between etching and engraving, what can be used for each method, among other things like practical tips or considerations when choosing appropriate equipment, plus best practices for getting good results. Whoever needs it – whether they’re amateurs doing crafts at home or small business owners working on prototypes or even professionals in industries making mass products – this article should give you the basics of how lasers work and what you can do with them.
What is Laser Engraving and Laser Etching?
Understanding How The Process Of Laser Engraving Works
Laser engraving is a manufacturing process that removes material from the surface of an object using a concentrated laser beam to form a desired pattern or image. This method works by pointing a laser at the material, which then burns or vaporizes away layers until it leaves behind an enduring mark. Accuracy in laser engraving is obtained by controlling the power, speed, and focus of the laser. Wood, glass, metal, and acrylic are some common materials used for this purpose. Depending on factors like type of material and chosen settings, depth as well as clarity of engravings may vary, thereby resulting in different finishes ranging from shallow designs to deeper, more complex patterns.
All About Laser Etching Process
Laser etching is a process that uses focused light energy from lasers to change the surface properties of materials without significantly removing any volume from them. In essence, what happens during this procedure is that instead of removing substantial amounts of substances like in cutting or engraving, only small portions get altered, hence resulting in lighter marks compared with those left behind by the other two methods. The precision achievable in laser etching primarily depends on certain parameters such as power level, frequency rate, scanning speed, etc., which can be adjusted accordingly to give rise to intricate designs having fine details characterized by narrow lines width difference between adjacent areas being less than one micron (0 – 1μm). Plastics, metals, and ceramics are among the commonly used items for carrying out laser etchings because they offer a wide range of options across different application fields.
Difference Between Laser Etching And Engraving Techniques
The main dissimilarity between these two lies in how much material each takes away during its execution, i.e., engraving removes materials, thus creating deeper permanent marks; on the other hand, marking systems modify surfaces without taking out significant amounts so that the resultant impression appears lighter. Moreover, engravings are more accurate than etchings because they involve deep patterns with fine lines, unlike the latter, which only deals with minimal changes around the edges of letters or other shapes. Additionally, both methods are affected by various factors associated with lasers, but typically, engraving requires higher energy levels and slower speeds when compared to etching.
How Does a Laser Etching Machine Work?
The Role of a Laser Marker in Etching
Laser markers are essential when it comes to etching because they produce concentrated light beams that interact with the surface of materials. By changing settings like power and speed, laser markers can control the depth at which an object is etched as well as the quality of the mark left behind. This ability to focus energy allows for complex patterns and precise details, which would otherwise be impossible due to lack of accuracy when dealing with different substrates. The calibration and configuration of this equipment are very important since they ensure that all engravings meet the required standards without altering too much material.
Using a Fiber Laser for Metal Etching
Fiber lasers have become popular in metal etching thanks to their higher beam quality and efficiency over other types. They work best by putting fine marks on different metals while keeping heat distortion low or none at all as much as possible. Frequency modulation combined with pulse width adjustment enables customization based on metal type, thus achieving the desired depth and clarity during the etching process. These lasers are small-sized but powerful enough, making them perfect for industries where accurate results need to be produced consistently within limited spaces, also referred to as compactness reliability.
Diode Laser vs CO2 Laser Machines
Diode lasers are small-sized due to their compact design; hence, they consume less energy, which makes them ideal for use in low-power applications such as engraving thin materials or cutting through them easily. Although they offer decent accuracy levels, diodes may not work effectively enough when it comes to heavier objects since this requires more power than what these devices can provide, whereas CO2’s will do just fine on any kind of thickness but mainly used for cutting purposes, mostly used in various forms like wood, acrylics, etc. Thus, if one wants something lighter weight, then a diode would be a great choice; however, if someone wants better resolution along with faster speeds, then co two would work better for them.
What Kinds of Laser Machines Are There?
Different Types of Lasers
Lasers can be classified by the medium used for light generation, such as solid-state or gas, and by application and output power. Common types on the market include solid-state lasers, like neodymium-doped yttrium aluminium garnet (Nd: YAG), which are known for their high power and durability; gas lasers, such as helium-neon lasers, which offer low-power alternatives; fiber lasers with unique design features that make them highly efficient and accurate tools for detailed marking among other applications; and semiconductor lasers also known as diode lasers – compact size combined with energy efficiency often used in consumer electronics or low-power engraving machines. Each type meets specific industrial, medical or communication needs where precision matters most.
How to Choose the Right Laser Machine
When choosing a laser machine, it is important that you consider what materials will be worked on because different types have different capabilities. For example, if one intends to do high-precision cutting and engraving on materials like wood or acrylic, then one should go for CO2 lasers. On the other hand, if their projects involve lightweight materials, then a diode laser might suffice, while fiber lasers would work best for detailed marking tasks due to their precision. Finally, evaluate power requirements based on the thicknesses/densities of your material so that performance/efficiency are not compromised, but always remember, no matter what industry you’re in – precision should never be an afterthought.
Advantages of a 10W Diode Laser
A 10Watt diode laser has many benefits, especially in terms of accuracy. The small size makes it easy to integrate into systems where space is tight, making them ideal choices for space-limited environments. Additionally, these types of devices use less energy, which saves money over time since operational costs are reduced as well. Minimal heat is produced, thus reducing the chances of warping during cuts/engraves caused by excessive heat. Moreover, this particular device emits a fine beam that enables one to achieve high-quality engravings quickly, even on intricate designs, hence saving time, too; not forgetting that they can also work with any other material, giving out detailed results due to its power settings.
What are some laser etching and engraving applications?
Sectors That Use Laser Technology
Laser technology is widely used in many industries because of its preciseness and adaptability. They include:
- Manufacturing: This involves exact cutting, engraving, and marking of parts.
- Medical: It is used in surgeries, tissue engraving as well as making medical gadgets.
- Automotive: This sector uses lasers to mark parts or even cut them out for better performance while adding aesthetic value.
- Aerospace: Here precision is key when manufacturing various components of an aircraft thus the need for this kind of light technology which also comes in handy during inspection stages.
- Electronics: At micro levels, circuits need to be engraved or rather marks put on different electronic components which makes this field significant too.
- Arts and Crafts: This can be utilized to cut materials into different shapes or create intricate designs on them thereby enabling people come up with more creative works.
- Packaging: For easy identification purposes through product tracking systems, lasers can be implemented when it comes to marking packages, such as boxes made from cardboard sheets used in wrapping goods before they are shipped off.

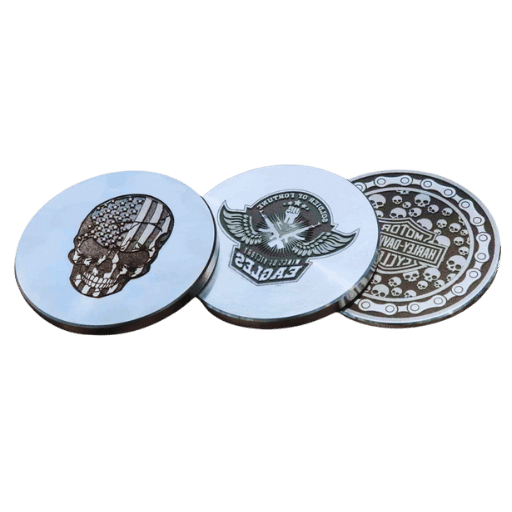

Laser Engraving on Stainless Steel and Other Metal
It is possible for a laser to etch stainless steel along with other metals and this can be done with an astounding precision by creating intricate designs having sharp edges while minimizing heat-affected zones. Additionally, high-resolution marking that does not compromise the material’s integrity makes it ideal for branding as well as functional marking. Moreover, different metal alloys can be processed effectively, too, which guarantees durability together with corrosion resistance without compromising beauty. You may also choose to process some other metals. However, copper may require more power than aluminum because its absorption coefficient is higher; therefore, setting up such a system involves adjusting speeds, among others, until desired results are achieved based on what one wants.
How Do I Laser Etch Serial Numbers And Deep Engraves?
To laser etch serial numbers effectively and achieve deep engravings, do the following:
- Material Choice: Choose materials that are suitable for laser engraving like stainless steel or aluminum which have been designed specifically for durability against such processes.
- Laser Setting: Adjust the laser setting according to the type of material being used; important factors include power level, speed rate as well as frequency employed where usually slower speeds result into deeper engravings due to exposure time being prolonged at high powers.
- Design Preparation: Create serial number design using vector graphic software then format it appropriately so that when scaled up its resolution remains unaffected during etching process since this will ensure crispness in final product.
- Trial Run: Before going ahead with actual engraving one should first carry out test etching on similar sample piece made from same material in order to verify correctness of settings used plus accuracy achieved through design placement during production phase later after completion of prototype stage.
- Implementation: Activate corresponding machine functions needed for completing the tasks by selecting them accordingly; keep monitoring progress closely while ensuring uniformity along the whole length where necessary till all serial numbers get engraved onto the chosen object surface.
- Finish Up & Quality Control: After engraving has been done, check clarity and depth of engraved serial numbers to ensure they are visible enough as well as being within required specifications.
Differences Between Laser Marking, Engraving and Etching
Laser marking understanding
Laser marking refers to the process of changing the appearance or creating visible marks on surfaces by using a concentrated beam. This method is known for its ability to deliver high-resolution imprints with utmost exactness. Unlike engraving that digs into an item, usually to make space for inks, laser marking mainly entails altering the colors of surfaces or creating shallow etchings. It can be used on different materials such as plastics, metals, ceramics etc., because it is fast and efficient while at the same time permanent.
Comparison between laser engraving versus laser etching
Laser engraving and laser etching are two different methods used in material marking. When compared with each other, we see that laser engravings involve removing some parts of materials, thus giving a deep three-dimensional mark that can withstand wear for long periods; also, they produce easily noticeable designs due to their durability. On the other hand, when you consider etchings, they do not remove much substance but just alter its topmost layer, thereby causing discoloration beneath this point only – normally, this change doesn’t go beyond a few microns depth-wise. Both techniques are highly accurate, but engraving suits those applications where there is a need for deeper marks that will last over time, while etching works better as a faster approach to modifying surfaces, especially where details are involved.
What distinguishes one type of laser technology from another?
Different types of lasers work according to various principles thereby making them useful in separate applications. For example, CO2 lasers use gas mixtures to generate power; these machines commonly cut through or carve out wood as well as plastics like acrylic sheets. Conversely, fiber optics rely on solid-state media, and this enables them to excel at quick metal marking while maintaining accuracy throughout the entire process, unlike any other system available today. Nd: YAG (neodymium-doped yttrium aluminum garnet) lasers can engrave deeply into almost any material because they have flexibility, which allows for adjustment of pulse width duration; also, it works well when used for deep etching purposes. Each laser type has its own merits depending on factors such as the kind of workpiece being handled, required marking speed, and level of detail, hence giving room for specialization within different industries.
Reference Sources
Frequently Asked Questions (FAQs)
Q: What do you mean by laser etching and laser engraving?
A: Using a laser, materials are marked or engraved in advanced processes called laser etching and laser engraving. The surface may be melted or vaporized to produce a high-contrast mark in the case of laser etching while material is removed so as to make deeper marks by laser engraving.
Q: In which industries are laser etching and laser engraving used?
A: Automotive sector, aerospace industry, medical devices manufacturers, jewelers and electronic firms among others are some of the industries that use laser etching and/or engraving. These methods have been known for their accuracy and versatility when it comes to marking different types of materials.
Q: How does one do laser etching?
A: By focusing a beam from lasers onto surfaces where they want to create various patterns; this is achieved through software control which directs an etcher machine on how it should operate during any particular process such as melting through heat energy input or changing color appearance without necessarily removing anything from the workpiece thus resulting into visible marks with high contrast against other areas around them
Q: What are some of the best ways of laser etching materials like metal or glass?
A: Different methods can be used in etching metals with a laser. Among them include pulse laser etching and deep laser engraving whereas for glasses one may have to regulate power output and speed with a lot of care to prevent breakage. For each type of material, it might be necessary to set specific parameters on the laser etcher so as to get good results.
Q: What precautions should I take when using a laser etcher?
A: When operating a laser etcher, safety measures must not be ignored. Put on safety goggles all the time, ensure there is enough ventilation to avoid inhaling smoke produced during engraving process and follow any other instructions given by manufacturer. Additionally, keep away flammable objects from your working area and install safety interlocks which will cut off power supply once someone opens door where machine sits thus preventing accidental exposure to beams.
Q: How can I select the right laser cutter for my needs?
A: There are several factors that you ought to consider when choosing an appropriate model, such as what kind of materials will you be working with? how deep does it need to be engraved? what is your budget? do you require higher speeds or more precision? Seeking advice from professionals dealing in lasers might enable one to make better decisions based on their own unique circumstances.
Q: Is it possible to etch any material using this technique?
A: Laser beams can burn through various substances including but not limited to metals, plastics, wood, ceramics or even glass among others. Nevertheless different materials will demand specific settings together with types of lasers utilized during processing stages hence people need understand these facts if they want perfect outcomes.
Q: With laser engraving technique how much depth can one achieve while engraving?
A: Engraving depth may vary depending on material being worked on plus energy levels applied by particular gadget. In most cases, it can go up to several millimeters whereby greater wattage lasers may be required if someone needs deeper engravings so this implies making more than one pass.
