Nylon CNC Machining Services — Custom PA6 & PA66 Structural Plastic Parts

Nylon delivers high strength, toughness, and outstanding wear resistance. Essengold custom machines PA6, PA66 & glass-filled nylon parts for automotive, industrial & aerospace applications; no minimum order; detailed quote within 24 hours.

Request a Quote

Send Drawings

What Is Nylon (Polyamide / PA)?

Nylon (PA) is a high-performance engineering thermoplastic featuring superior tensile strength, abrasion resistance, and impact toughness, widely used for load-bearing mechanical components. Its unique hygroscopic property requires special design considerations for tight-tolerance projects.

Nylon Common Grades for CNC Machining

PA6 (Nylon 6)

Superior flexibility and impact resistance, higher moisture absorption rate, cost-effective and widely stocked. Best choice for parts prioritizing shock resistance instead of strict dimensional stability.

PA66 (Nylon 66)

Higher rigidity, heat resistance up to 120℃ and lower water absorption. Default precision grade for dimension-critical structural machined components.

Glass-filled PA6 / PA66-GF

Glass fiber reinforcement improves stiffness and drastically reduces moisture swelling, ideal for tight tolerance parts working under varying ambient humidity, slightly poorer impact toughness.

MoS₂ Filled Nylon

Molybdenum disulfide additive enhances self-lubrication and wear performance, specially customized for sliding bearings and friction wear components.

Key Advantages of Machined Nylon Parts

Excellent Strength-to-Weight

Higher mechanical strength than common ABS with much lighter weight than metal, perfect for lightweight structural brackets replacing aluminum/steel.

Outstanding Fatigue & Toughness

Absorb repeated impact and cyclic vibration without cracking, long service life for dynamically loaded mechanical assemblies.

Great Wear & Abrasion Resistance

Resist surface abrasion under continuous sliding friction, extend service lifespan for wear pads, guides and bushing inserts.

Broad Chemical Compatibility

Resist oils, fuels, greases and alkaline liquids, better alkali resistance than POM for fluid contacting mechanical parts.

Stable CNC Machinability

Clean cutting performance without specialized tooling, consistent finished dimension for milling, turning and tapping processes.

Low Volume Cost Saving

No expensive injection mold investment, affordable for prototypes and small-batch customized mechanical parts with quick CAD modification.

Critical Design Point: Nylon Moisture Absorption

Nylon is hygroscopic and expands when absorbing ambient moisture, leading to dimensional variation. PA6 saturates ~9~10% weight moisture while PA66 ~7~8%, glass-filled grades only 1~3%.

Design Solutions:

Select GF filled nylon for tight-tolerance parts in a changing humidity environment
Reserve assembly clearance to compensate for material expansion & shrinkage
Prefer PA66 over PA6 for dimension-sensitive finished products
Switch to low-hygroscopic POM if an ultra-stable dimension is mandatory

We will remind all customers of moisture-related risks before production starts, as part of the quotation process.

Our Nylon CNC Machining Capabilities

Multi-axis CNC Milling

Complex pocket, slot and contoured structural brackets from solid PA block with stable dimensional accuracy.

Precision CNC Turning

Bushings, rollers, spacers and threaded cylindrical nylon components with tight diameter tolerance control.

Drilling & Custom Tapping

Optimized drill size for nylon spring-back to avoid thread crack, blind hole & counterbore processing available.

Single Prototype Machining

One-off real PA material functional samples with actual mechanical properties, fast turnaround without MOQ limit.

Low & Mid Batch Production

Consistent batch quality without injection mold cost, suitable pre-mass-production verification parts.

Complex Load-Bearing Geometry

Multi-feature structural components with precision bearing seats and irregular load-bearing bores.

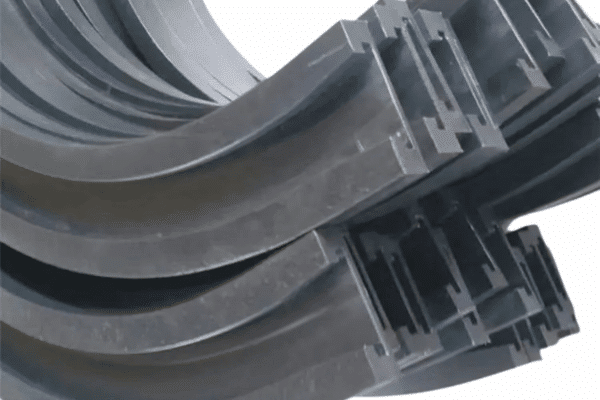

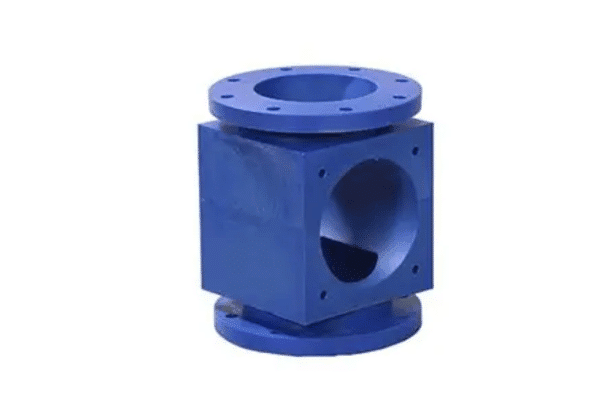

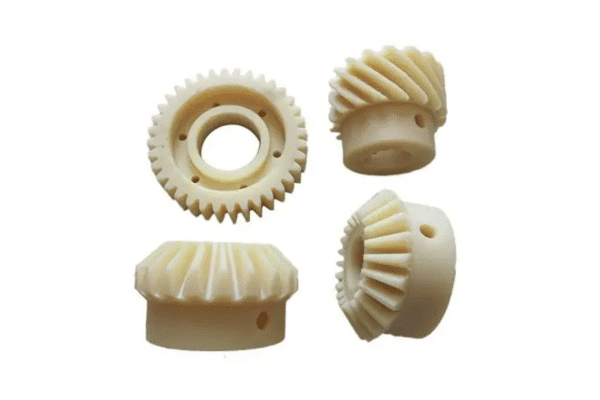

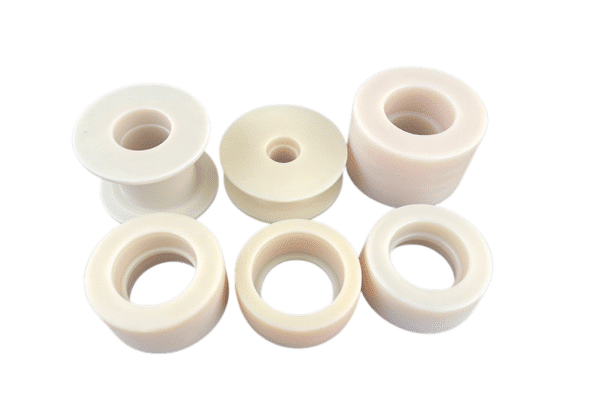

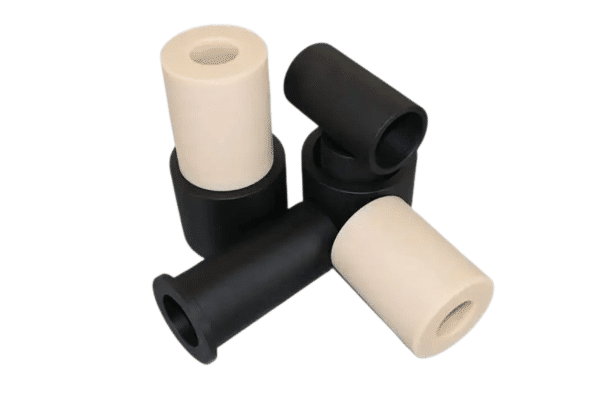

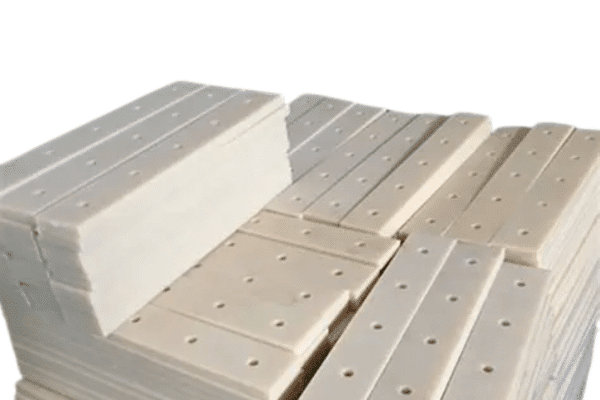

Common CNC Machined Nylon Components

Nylon PA6 VS PA66 Typical Physical Properties

Material Property	PA6	PA66
Tensile Strength	70~80 MPa	80~90 MPa
Flexural Modulus	2500~3000 MPa	2800~3300 MPa
Continuous Working Temp	90~100℃	110~120℃
Saturation Moisture Absorption	9~10%	7~8%
Density	1.13~1.15 g/cm³	1.13~1.15 g/cm³
Core Feature	High toughness, low cost	High stiffness, low water uptake

PEEK VS PEI VS PTFE Comparison

Item	PEEK	PEI(Ultem)	PTFE(Teflon)
Max Continuous Temp	250℃	170℃	260℃
Mechanical Strength	Very High	High	Low
Chemical Resistance	Excellent	Good	Best
Friction Coefficient	Medium	Medium	Ultra Low
Flammability	Self-extinguish	V0 Grade	Non-flammable
Core Application	Med/Aero High Load	Flame Retardant Elec	Seal Gasket Parts

Key Design Guidelines for Nylon Machining

Control Moisture Influence

Reserve assembly clearance for humidity expansion; choose GF nylon for tight tolerance finished products.

Minimum Wall Thickness ≥1.5mm

Thinner walls easy deform during clamping & machining, mark thin-wall area on your drawing for process adjustment.

Optimize Thread Drill Size

Nylon thread springs back after tapping, adopt slightly larger pilot hole than standard metal tap specification.

Inner Corner R≥0.5mm

Avoid sharp inner corners to eliminate stress crack under cyclic mechanical load.

Thermal Expansion Clearance

Set assembly gap between nylon and metal parts to compensate different thermal expansion rate.

Chemical Compatibility Check

Nylon resistant to oil/alkali but damaged by strong acid, confirm working fluid environment before material selection.

Tolerance & QC Standard

General Tolerance: ±0.1 mm

Precision Tolerance: Up to ±0.005 mm

Every nylon piece is fully dimensionally inspected against the drawing before delivery, and FA inspection is available for bulk orders on request.

Available Surface Finishes

As-Machined: Standard finish for most structural mechanical parts
Fine Polishing: Smooth surface for low-friction sliding contact faces
Bead Blasting: Uniform matte texture for visible aesthetic housings

Note: Nylon is not suitable for regular painting/plating without special surface activation treatment.

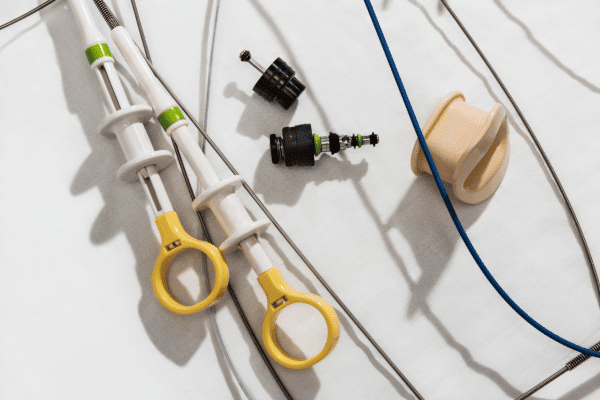

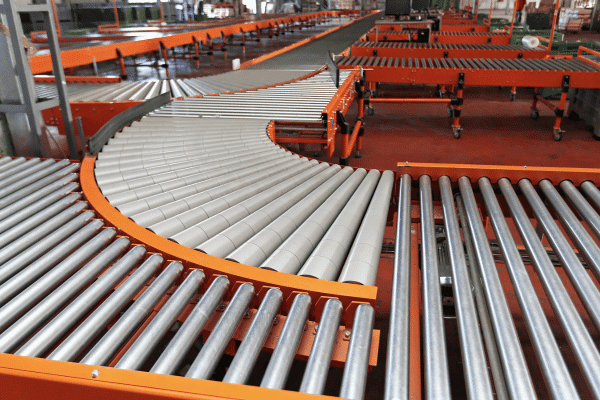

Main Industries We Supply

Order Flow: From CAD Drawing To Finished Nylon Parts

Submit Your CAD Files

Send STEP/IGES/DXF/DWG + 2D drawing with tolerance, finish and working environment info.

Get Detailed Quote Within 24H

Engineer recommend suitable nylon grade & list price, lead time and moisture design tips.

Confirm All Specifications

Final confirm PA grade, tolerance and anti-humidity design before cutting starts.

CNC Machining & QC Inspection

Machining → optional surface finish → full dimensional inspection per drawing.

Global Shipment

Standard 5~15 working days delivery, express rush service available for urgent projects.

Upload File

Frequently Asked Questions

Q: What is nylon CNC machining?

A: It’s a process that cuts solid PA6 or PA66 blocks into custom parts using computer-controlled machines. This delivers precise, functional components without injection mold costs. Send us your CAD file to get started.

Q: Which nylon grades do you offer?

A: We machine PA6, PA66, glass-filled nylon (PA6-GF/PA66-GF), and MoS₂-filled nylon. PA6 suits impact-heavy parts, PA66 fits dimension-critical work, glass-filled grades handle tight tolerances in humid settings, and MoS₂ nylon excels in sliding wear applications.

Q: How tight are your machining tolerances?

A: Standard general tolerance is ±0.1 mm, with precision tolerances down to ±0.005 mm on critical features. Mark your priority features on the drawing so we can plan the process accordingly.

Q: Does nylon's moisture absorption affect my parts?

A: Yes, nylon is hygroscopic and expands as it absorbs ambient moisture, which shifts dimensions. PA6 saturates at about 9–10% by weight, PA66 at 7–8%, and glass-filled grades at only 1–3%. For tight-tolerance parts, choose glass-filled nylon or PA66, and reserve assembly clearance for expansion.

Q: What is your lead time?

A: Standard production runs 5–15 business days, depending on part complexity and quantity. Express rush service is available for urgent projects—just flag the deadline when you request a quote.

Q: Is there a minimum order quantity?

A: No, we accept single prototypes with zero MOQ. This lets you validate a real PA-material part with actual mechanical properties before committing to a batch.

Q: What post-processing options are available?

A: We offer as-machined finish, fine polishing for low-friction sliding faces, and bead blasting for a uniform matte texture. Note that nylon does not accept standard painting or plating without special surface activation. Specify your finish needs when requesting a quote.

Q: What file formats do you accept?

A: We prefer 3D CAD files in STEP or IGES format, paired with a 2D drawing showing tolerances, finish, and working environment. We can also work from a 2D PDF with full dimensions, though quoting and machining may take slightly longer.

Q: How do you inspect quality?

A: Every part is fully dimensionally inspected against your drawing before shipping, using CMM, calipers, micrometers, and optical comparators. We provide an inspection report on request, plus FA inspection for bulk orders.

Q: How do I get a quote?

A: Send your CAD files and we’ll return a detailed quotation within 24 hours, including a free grade recommendation and moisture design tips. Parts start at $50 per piece with no prototype MOQ.
